3D Architectural Modeling: What It Is and How It Works
3D architectural modeling turns an architect's drawings into a 3D model used for design review, presentations, rendering, and BIM handover. Here is what it involves.
In this article
- A BIM model is built for documentation. A visualization model is built for how it looks on camera.
- How much detail a model needs depends on its use: design review, client presentation, or marketing.
- Files like DWG, PDF, Revit, ArchiCAD, SketchUp, and IFC are enough to get a model built.
- The model is checked against the original drawings before it is textured or rendered.
What is 3D architectural modeling

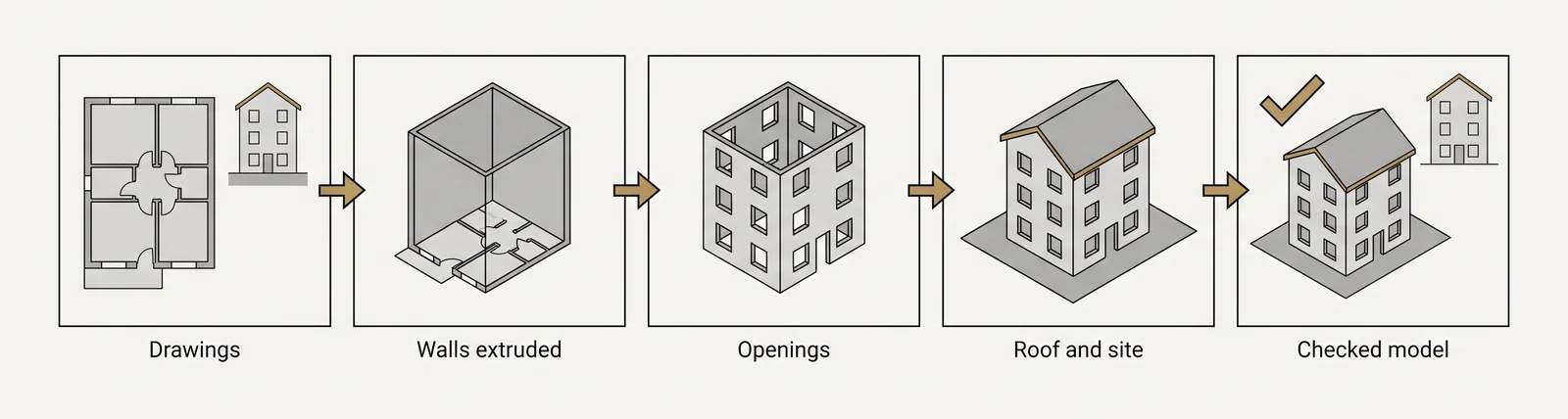

3D architectural modeling is the process of building a three-dimensional digital model of a building from its drawings. Architects, developers, and their marketing teams use the model for design review, client and planning presentations, rendering and animation, and eventually for BIM handover. A version of the same building can move from a 3D modeling file into a finished image through architectural visualization.
For the basics of how any 3D model, not only a building, is put together, see our guide to what 3D modeling is.
The same underlying model can serve very different purposes. A model built to check that structure and building systems do not clash is not the same file as one built to look right on a marketing hero shot. What changes between the two is covered below.
3D modeling for architecture has been common since BIM and rendering software matured in the 1990s and 2000s. What has changed since then is speed and realism, not the basic idea: a digital model that stands in for the building before it is built.
What 3D architectural modeling is used for
The same model, or a version built from it, is used at several points in a project:
- Design development and coordination. Architects and engineers check that walls, structure, and building systems fit together before construction drawings are finalized.
- Client and planning presentations. A clean, readable model helps a client or a planning committee understand massing, scale, and layout without reading technical drawings.
- Rendering and animation. A photoreal render or a walkthrough animation is built from a version of the model prepared for how it looks on camera, not for construction detail.
- Marketing. Off-plan sales, brochures, and property listings use the same rendered views, often before the building exists.
- BIM handover. On larger projects, the model, or its data, moves on to facility management once the building is complete, carrying information about materials, systems, and maintenance.

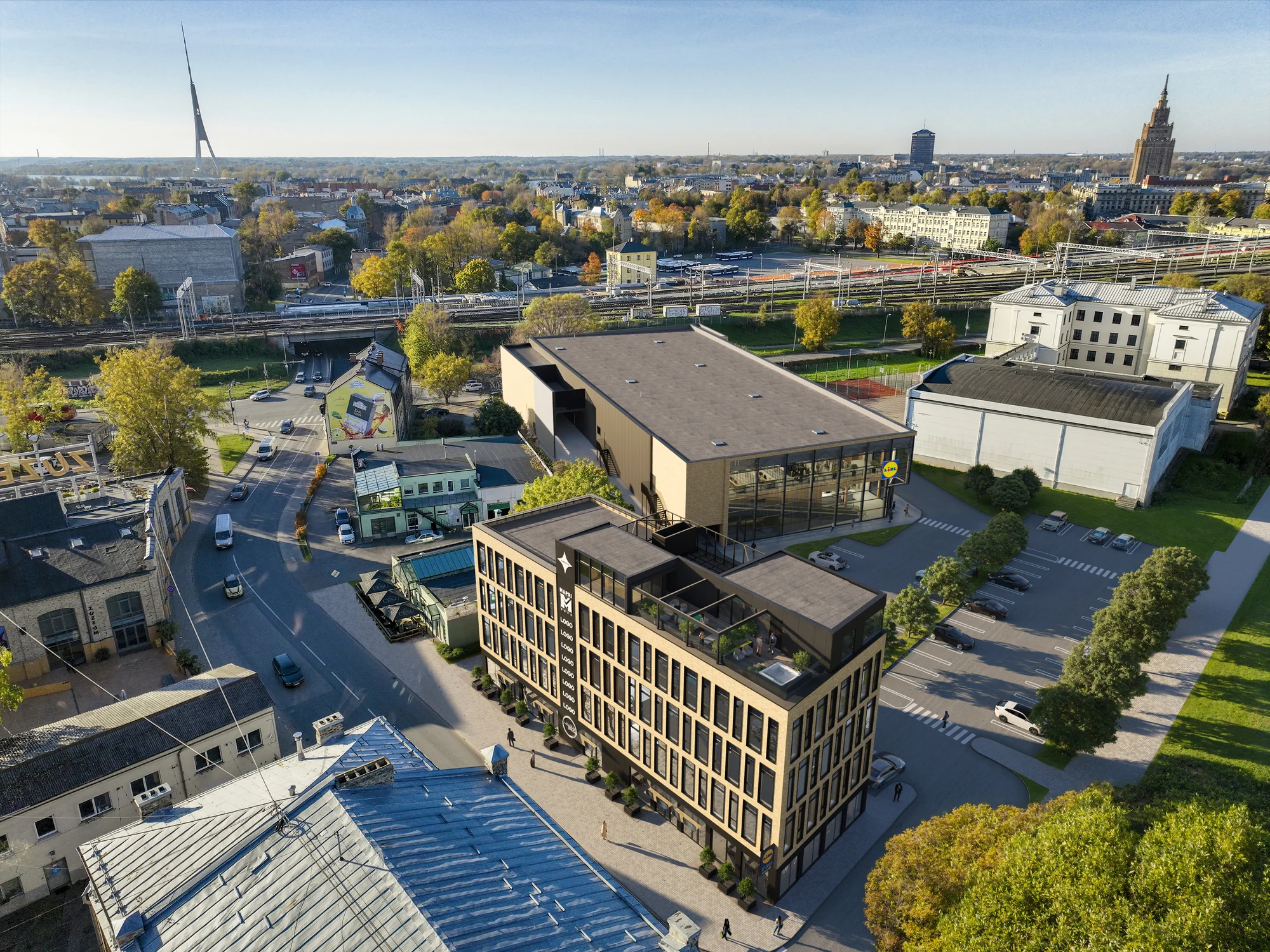

Presentations and planning submissions often lean on a wider view of the site, showing a new building against its surroundings for an architect’s planning submission.
BIM model vs visualization model
A Revit or ArchiCAD BIM model is built for documentation. Its job is to be accurate everywhere, carry data for every wall, door, and system, and stay consistent as the design changes. A visualization model is built for how it looks on camera. Its job is to look right from the one or few views a render actually shows.
Turning a BIM model into a visualization model usually means:
- Cleaning. Internal-only elements, duplicate geometry, and construction annotations are removed. None of that helps a render, and it slows the render down.
- Detail where the camera looks. Trim, hardware, and small geometry are added close to the camera and simplified, or left out, in the background where no one will see it.
- Materials. BIM materials are often schematic placeholders. A visualization model gets real, textured materials: the actual stone, timber, or render finish, lit for the time of day the image needs to show.
The comparison below sums up the difference.
| BIM model | Visualization model |
|---|---|
| Built for documentation and coordination | Built for how it looks from the camera |
| Accurate everywhere, including hidden areas | Detailed only where the camera sees it |
| Materials are often schematic placeholders | Materials are real and textured, matched to the light |
| Stays live and updates through the design process | Built from one stage of the design, for one set of views |
Turning a BIM model into a visualization model is exactly what an architectural visualization service does. It starts from whichever file already exists, BIM or CAD, and builds from it, rather than starting from a blank scene.

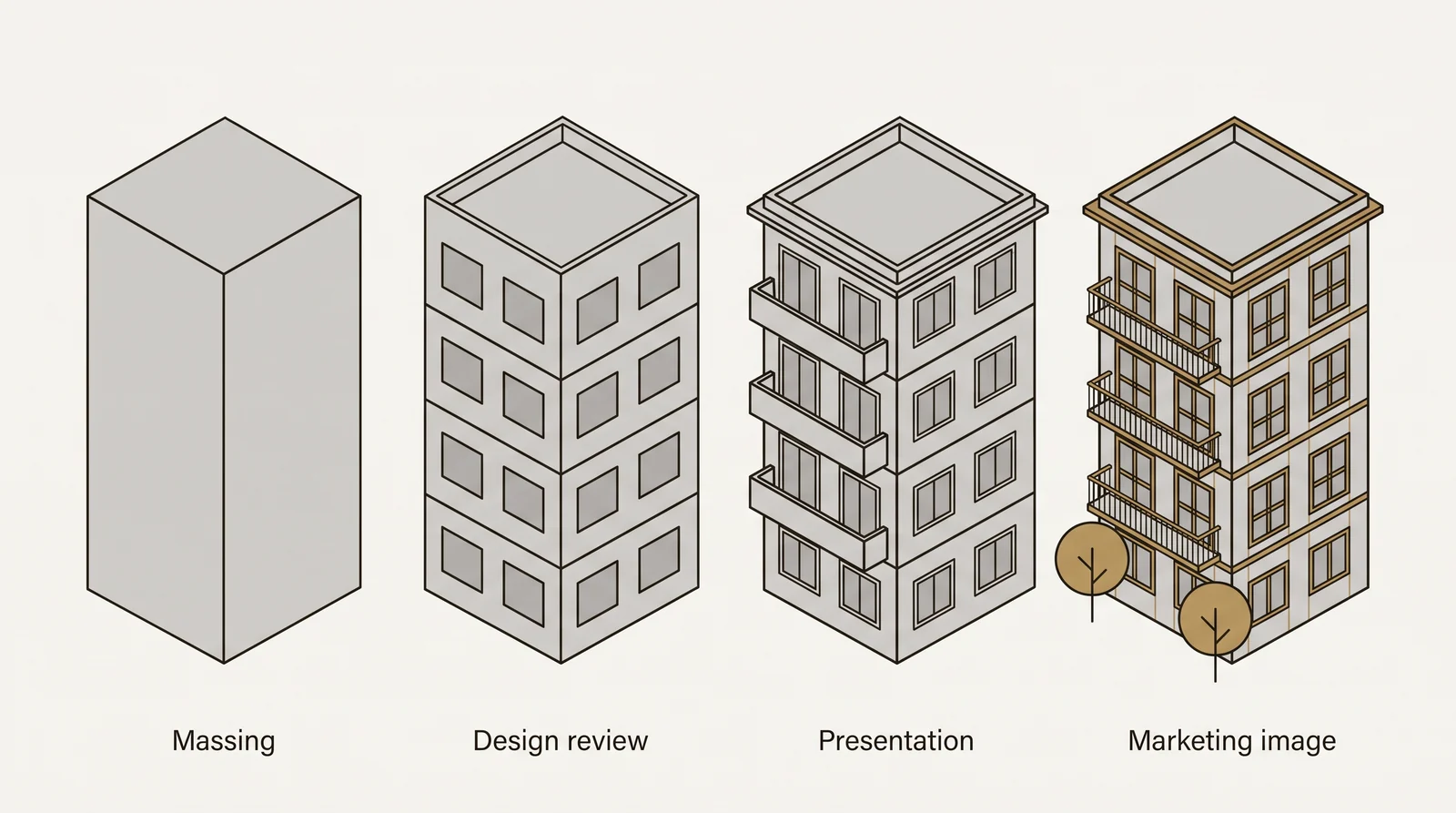

Level of detail by use
How much detail a model needs depends on what it is for, not on the size of the building. In BIM, LOD usually means Level of Development (LOD 100 to 500), which describes how complete and reliable each element is. For visualization the practical question is simpler: how much detail each part of the model needs for its use.
- Early design review. Massing and layout only. Windows and doors can be simple boxes.
- Client presentation. Medium detail everywhere, higher detail on the hero view.
- Marketing and planning images. High detail and full materials on everything the camera sees, low detail on background buildings and landscape.
- BIM handover. Detail matched to what facility management will need later, not to how a camera sees it.
See our guide to level of detail in 3D modeling for how LOD works in games and real-time 3D, which is a different meaning of the same letters.
Tip: if a set of images needs several rooms or views, ask whether the scene can be reused between them. Building the room once and reusing it for several camera angles is faster than modeling each view from nothing.
Files to send to have a model built
A studio, or an in-house team, needs enough information to know the building’s real dimensions. Common files accepted for a quote or a build:
- DWG. CAD drawings, plans, and elevations, from AutoCAD or a similar program.
- PDF. Plans and elevations exported as PDF, still usable if dimensions are marked.
- Revit files. A BIM model, if one already exists, saves rebuilding the geometry from scratch.
- ArchiCAD files. The same applies to an ArchiCAD BIM model.
- SketchUp. A SketchUp massing model is often enough for early presentations.
- IFC. An open IFC export works across BIM programs and avoids a proprietary file format.
A photo of a hand sketch, or a rough massing model, is usually enough to start a conversation and get a fixed price and delivery date back.
How accuracy is checked against the drawings
A model is only useful if it matches the real building. Before it is textured or rendered, it is checked against the drawings: window and door counts, floor to floor heights, balcony and roofline positions, and overall proportions.
AI image and video tools are good for loose mood boards and early concepts, but they do not hold a building’s actual geometry. Window counts, balcony positions, and roofline can drift from one AI-generated image to the next, and nothing in the output is checked against the drawings. A model built from the drawings, and checked by a person, does not have that problem.
Having a model built by a studio
An in-house team can build its own models, but a busy studio, a tight deadline, or a one-off need for photoreal marketing images is often reason enough to send the drawings to a specialist instead. 3D Studio builds models to order from the files an architect already has. The process has 4 stages:
- The files are uploaded and the brief is built from them, no questionnaire or discovery call needed. A fixed price and delivery date come back within 30 minutes.

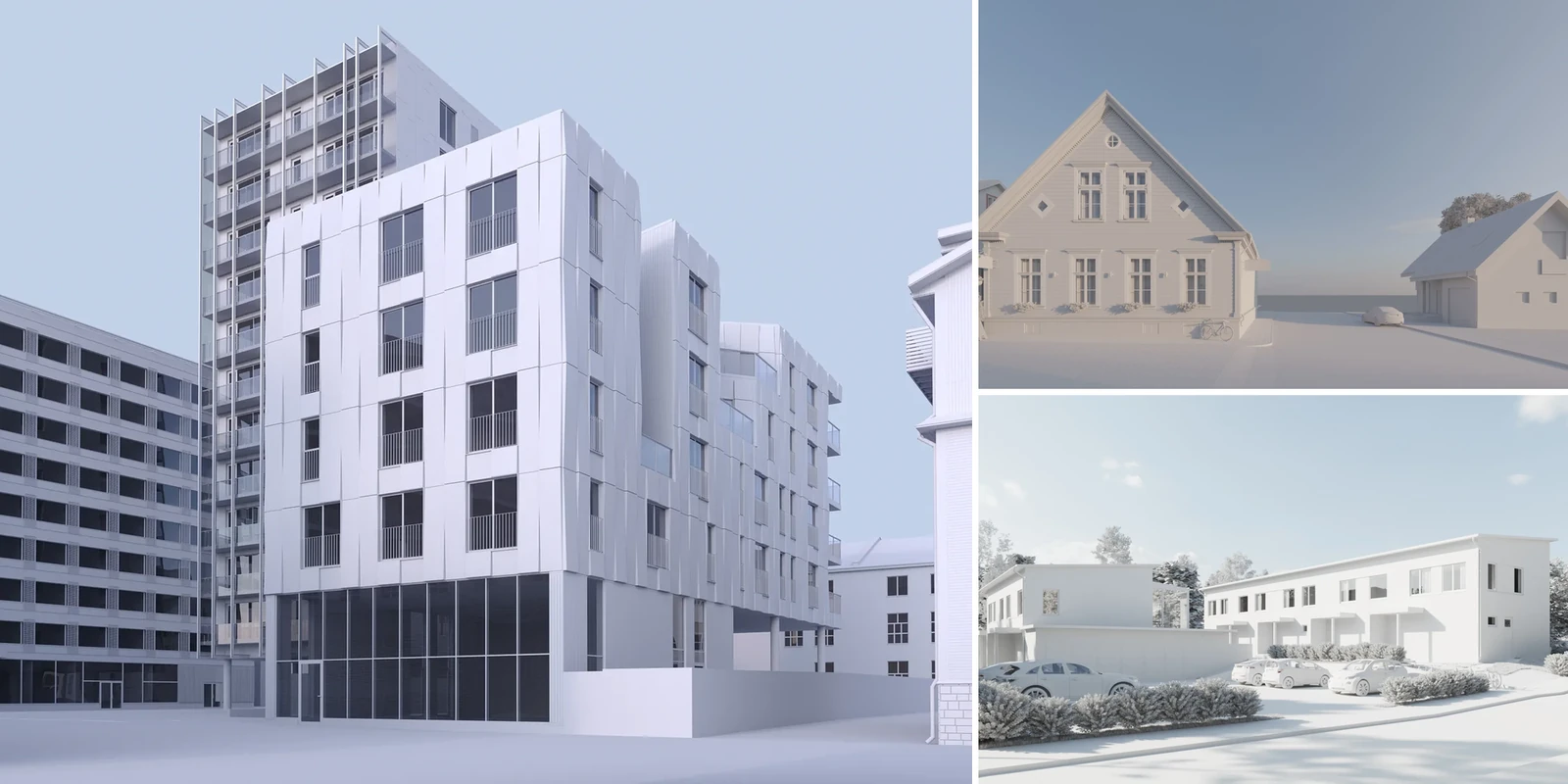

- An untextured clay model is built first. Camera position, lens, height, and time of day are agreed at this stage, while changes are still cheap.
- A photoreal first look at one view follows, with materials, light, and surroundings added. Still cheap to change, and 2 revision rounds are included.
- Final delivery in 4K, with full usage rights, for brochures, portals, hoardings, press, social, or planning submissions. Further views reuse the same scene, which keeps them cheaper than the first.
3D Studio has completed 1,231 projects since 2013, and is rated 4.9 on Clutch from 47 reviews. See how the process works or browse the portfolio before sending files for a quote.
Questions about 3D architectural modeling
What is 3D architecture software?
It usually means one of two kinds of program. Design software such as Revit, ArchiCAD, SketchUp, and AutoCAD is used to design and document a building in 3D. Visualization software such as 3ds Max, Corona, and V-Ray is used to turn that design into a photoreal image or animation, separately from the design file.
What are the benefits of 3D modeling for architecture?
A 3D model lets a client or a planning committee see a design before it is built, helps different building systems get checked in one place, and produces the presentation and marketing images a project needs. It also makes it easier to change one design element without redrawing a whole set of 2D plans.
Can the same model be used for construction and for marketing images?
Not directly. A documentation model is cleaned up, given detail where the camera looks, and given real materials before it is used for a render. The two versions usually diverge once the visualization work starts.
Do I need a finished BIM model to get a 3D visualization built?
No. CAD drawings, PDF plans and elevations, a SketchUp massing model, or even a photo of a hand sketch are enough to start. A studio builds whatever detail is missing from there.
